Welcome to Microscope Monday - How it's done

Illustration for article titled Welcome to Microscope Monday - How its done

Welcome to Microscope Monday, where every week I will feature some of my microscope artwork, share any interesting information I have, and encourage you to post your own microscopic and macro images in the comments. Please do.

Advertisement

I am not a scientist and have no formal training. I view this purely as artwork. I am currently housebound due to a disability, so I am focusing on making these photos, something I have done on and off for many years. At a later posting, I will talk about my history with microscopes and what led me here, but today I want to talk about the process I go through when I make these photos. It’s something I get asked about a lot, and it is complicated, so I hope you can bear with me. I took a lot of photos to help.

The first thing you need to know is that a microscope has a very limited field of view and an even more limited focal length. What this essentially means is that only a portion of the thing you want to photograph will be in the shot and only a little bit of it will be in focus. For the rest, I need software.

Advertisement

The microscope’s tiny lens takes in very little light, so samples need to be brightly lit. As you’ll see from my messy work table, I came up with an admittedly imperfect DIY solution with three LED lights. Now... let’s get started.

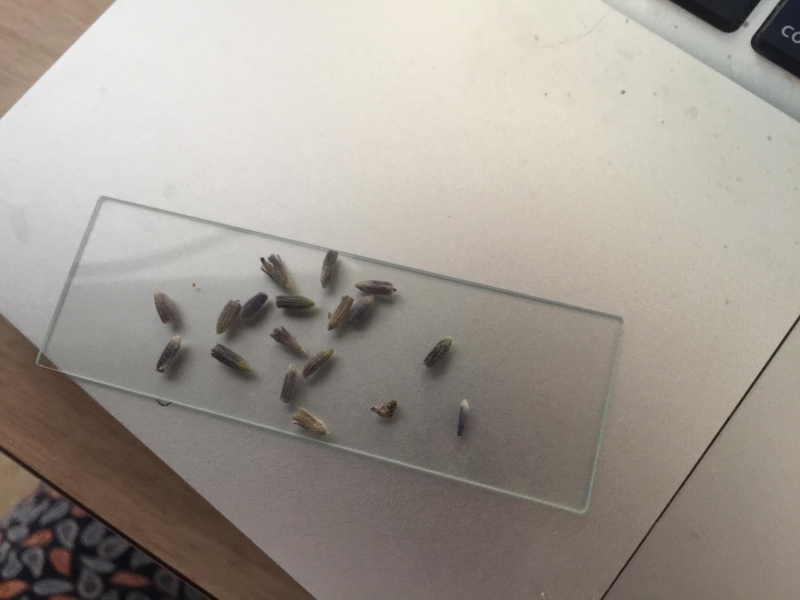

The first thing to do is pick out a sample. I want to take a photo of lavender today, from a sample kindly provided to me by a Redditor who owns a spice market who sent me a lot of different spices in the mail to keep me busy! Here are the different lavender buds. I have to choose one with the naked eye or sometimes a magnifying glass. In this case, the naked eye is sufficient.

Advertisement
Illustration for article titled Welcome to Microscope Monday - How its done

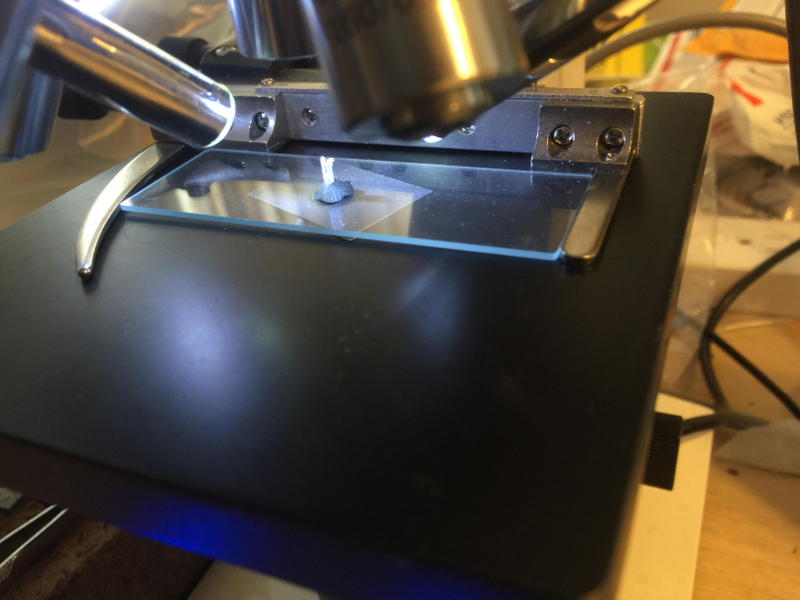

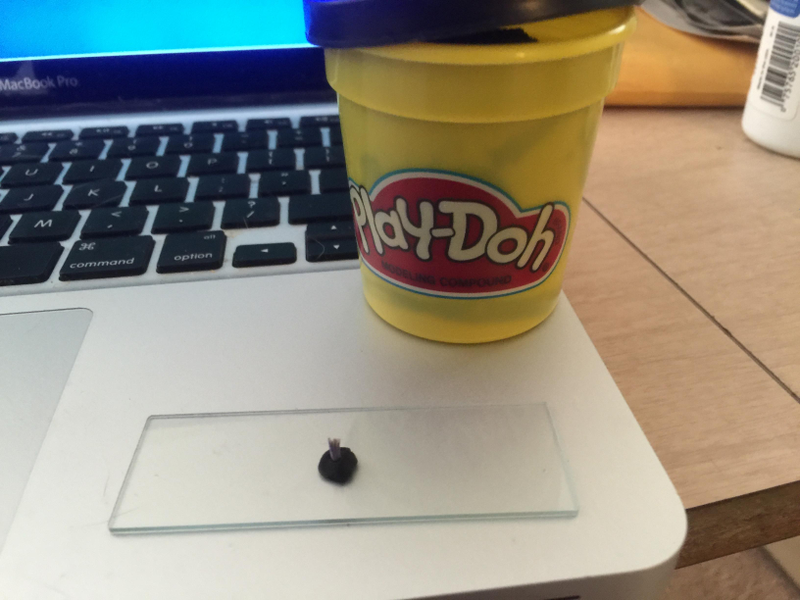

Next, I put the subject on the slide for photographing. I want to get the top of the flower, meaning it has to stand straight up. Thankfully, there is a simple solution to that...

Advertisement
Illustration for article titled Welcome to Microscope Monday - How its done

Then I get the lighting just right. My iPhone can’t capture this very well, but trust me, it’s lit properly.

Advertisement
Illustration for article titled Welcome to Microscope Monday - How its done

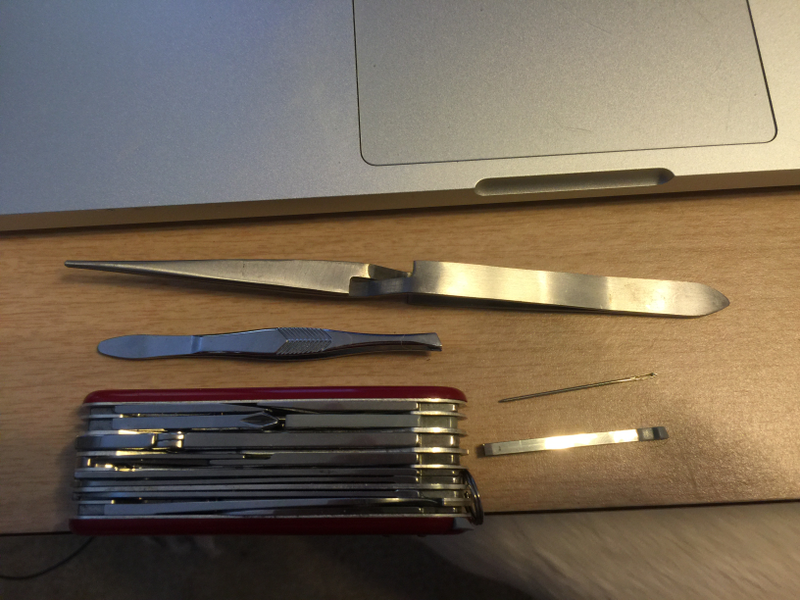

If I need to move anything around, I have a variety of tools at my disposal.

Illustration for article titled Welcome to Microscope Monday - How its done
Advertisement

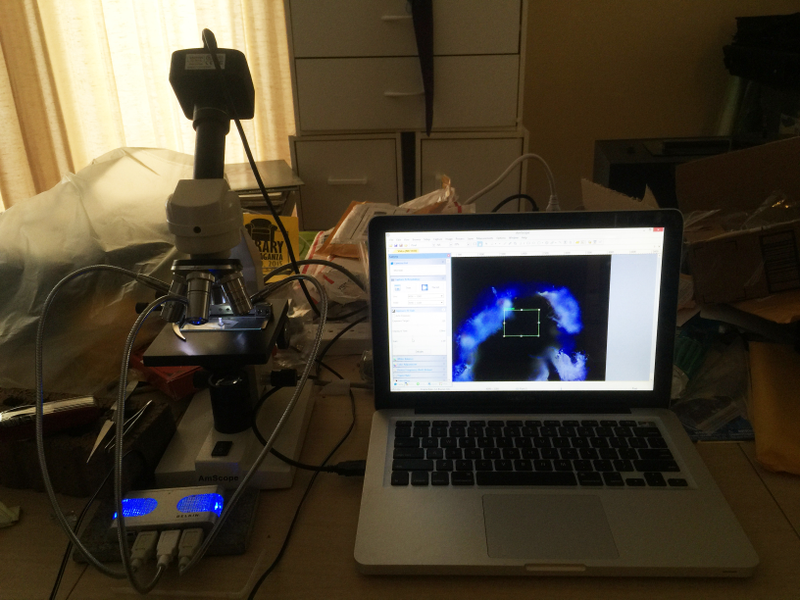

And finally, we’re ready to go... here is my setup on our very messy multi-use table. As you can see, it’s a standard lab microscope with a camera stuck into the eyepiece. It’s a 14 mp camera from Amscope, which I am not very happy with, but I’ve learned to live with. This is connected to my MacBook which is booted into Windows, because their terrible software doesn’t work properly on a Mac. I usually shoot at the lowest level of magnification, 40x, because I like showing whole objects and it’s harder to do that with higher magnification.

Illustration for article titled Welcome to Microscope Monday - How its done
Advertisement

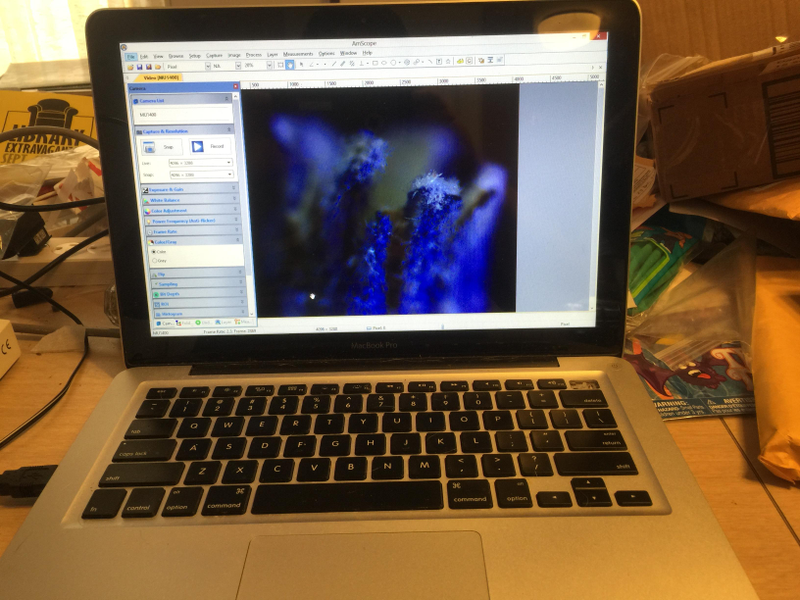

This is what the terrible software looks like. Sorry, I have no idea how to take a screenshot on Windows, so I just did it this way. That’s also a different picture than the one I was working on above.

Illustration for article titled Welcome to Microscope Monday - How its done
Advertisement

I have to take hundreds of pictures of the subject, while slowly turning the fine focus knob on the microscope. If the picture is larger than my field of view, I have to move the slide (which can be moved with some adjustable knobs) so that the next part of the subject is revealed so I can do that all over again and stitch it together in the end. In this case, I’m only going to do this twice, but I typically have to do this six or seven times. I’ve done it as much as twenty. As you can imagine, this is a long and boring process.

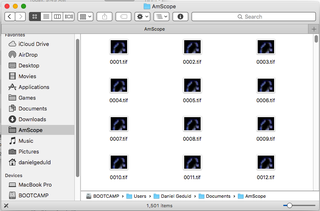

I actually took pictures of several other subjects that day. In the end, you can see how many I ended up with.

Advertisement
Illustration for article titled Welcome to Microscope Monday - How its done

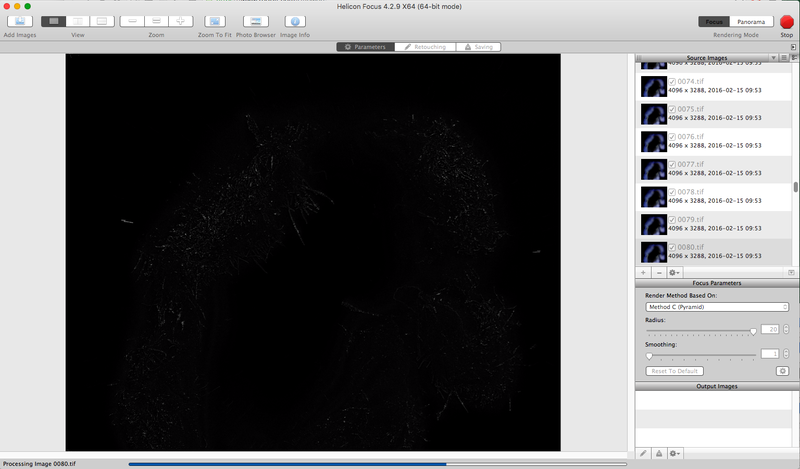

I then put the images into a piece of software called Helicon Focus which puts them all together into one single image with everything in focus. In this case, 125 images.

Advertisement
Illustration for article titled Welcome to Microscope Monday - How its done

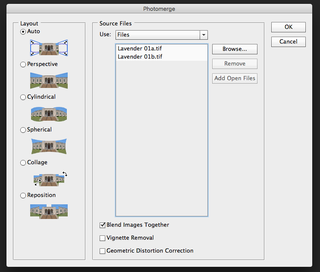

I do the same thing to the second series of images I took for the rest of the flower. After that, it’s over to Photoshop to put them together with the Photomerge feature.

Advertisement
Illustration for article titled Welcome to Microscope Monday - How its done

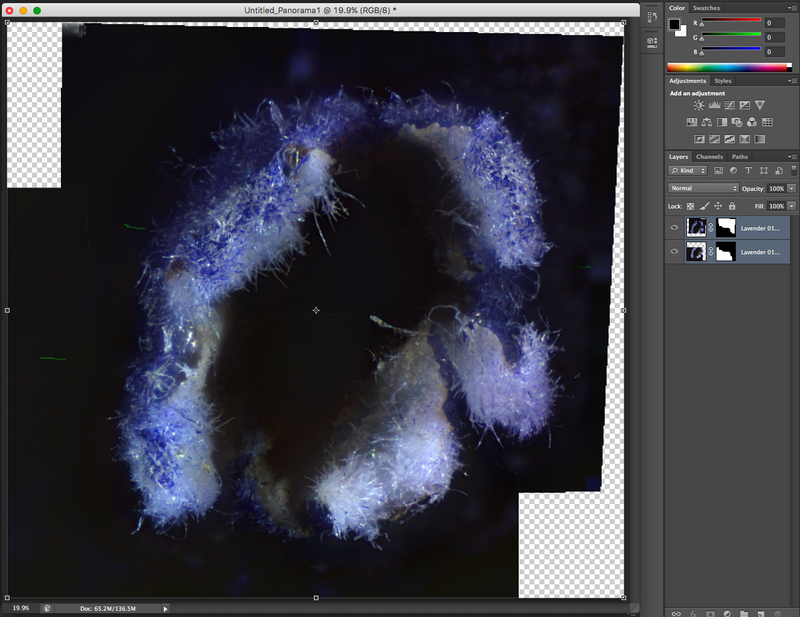

After some Photoshop wizardry, I am presented with this-

Illustration for article titled Welcome to Microscope Monday - How its done
Advertisement

Which I then crop, clean up and do touch-ups before saving as the final photo. Here it is: Lavender Flower at 40x no. 1.

Illustration for article titled Welcome to Microscope Monday - How its done
Advertisement

And there you have it. All-in-all, I would estimate the average photo takes 3 hours. A more complicated one can take up to 10.

I hope you enjoyed this rather long first edition of Microscope Monday. I promise the future ones will be shorter.
